Products Features

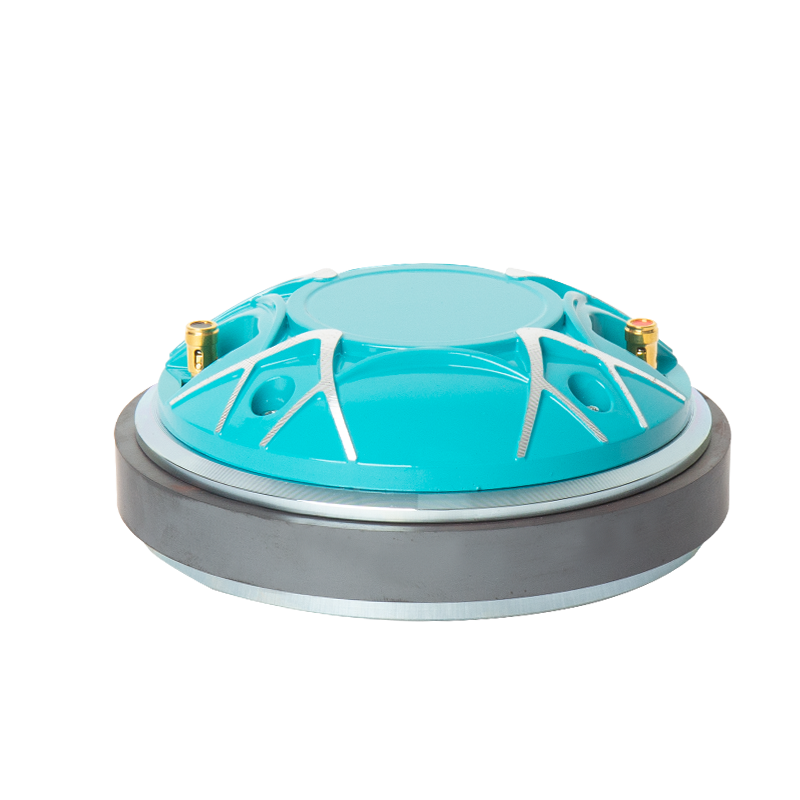

- Professional compression driver is ideal for high performance applications, from high power 2-way loudspeaker to multiple-way sound systems and professional line-arrays
- 3-inch Diaphragm pure Titanium Compression Driver with 2-inch Exit Throat
- 190*20mm big ferrite magnet provide with 110 watt RMS Continuous program power handling
- Voice coil assembly is designed using high temperature Kapton former
- Copper inductance ring for extended response

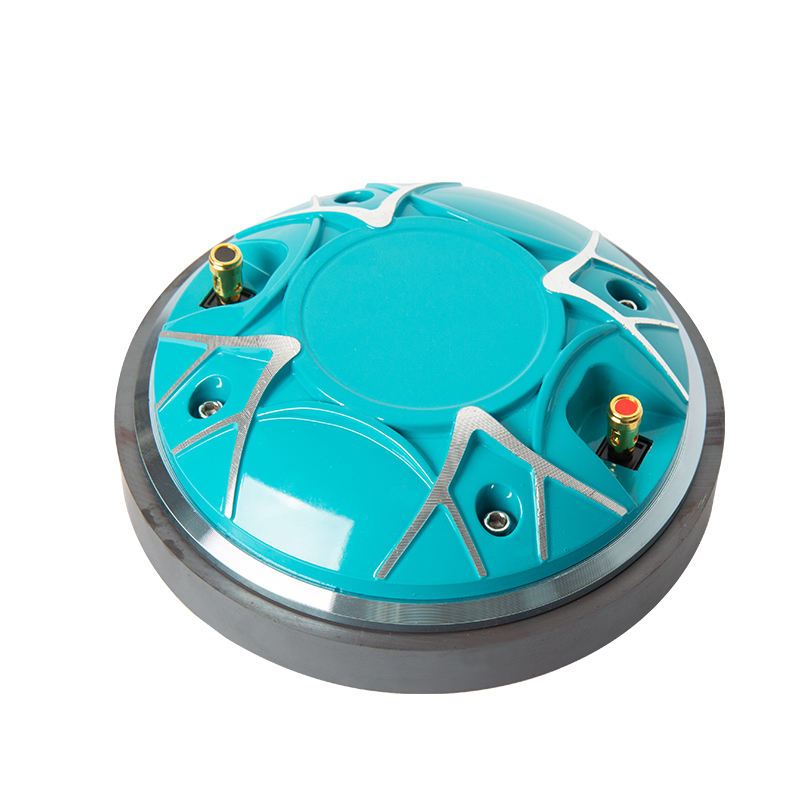

- Die-cast aluminum rear cover and front adaptor
---------------------------------------------------------------------------------------------------------
Products Description
 |
 |
||||
|
Professional 3" compression driver for speaker tweeter |
110 watt RMS and 220 watt peak power handing |
 |
 |
||||

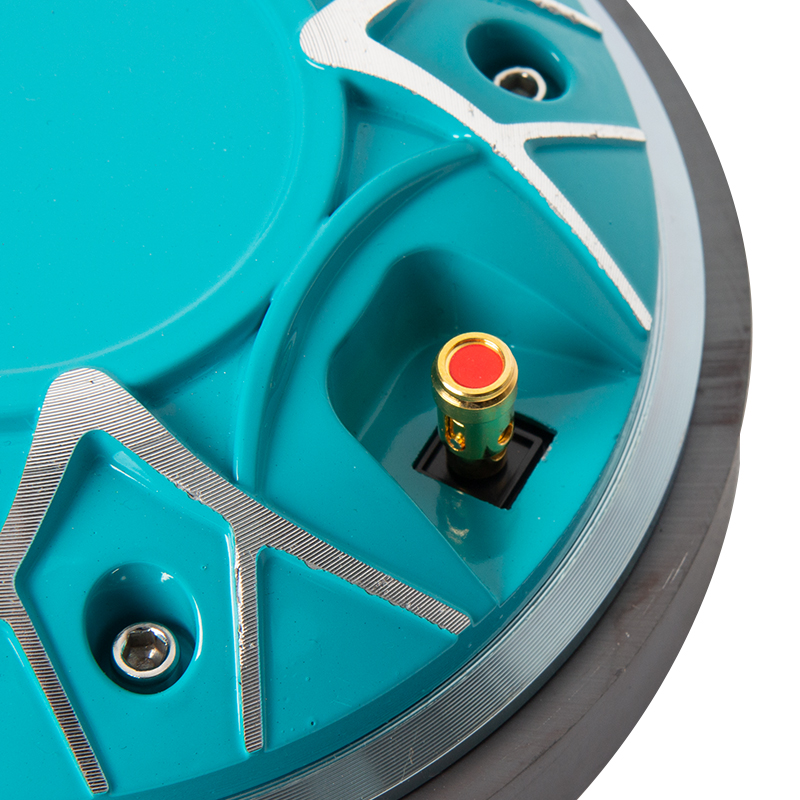

| High quality CCAW 3" voice coil and 190*20mm ferrite magnet and Titanium diaphragm | Die-cast aluminum with quality binding post |
Speaker Specifications
| Product Type | 3" compression driver of speaker | Model No. | BH753 |
| Power | 110W RMS, 220W Peak | Impedance | 8 OHM |
| Sensitivity | 106 dB | Frequency Response | 600 Hz - 18 KHz |
| Shell Material | Die-cast aluminum | Voice Coil | 3" / 76mm CCAW vioce coil |
| Magnet Material |
190*20 ferrite magnet |
Diaphragm Material |
Titanium diaphragm |
|
Throat |
2"/51 mm Throat |
Mounting |
bolt-on / P102-4-M6 |
| Unique services | Sample and high quality graphic are available | ||
Accessories Options
 |
 |
 |
||||||
| High quality solid carrying case is available | PU Carrying bag is available | Detachable microphone is available |
Products FAQ
-
What applications is this compression driver designed for?
It is ideal for high-performance 2-way loudspeakers, multi-way systems, and professional line-array installations demanding high output and clarity. -
What size diaphragm and exit throat does it use?
3-inch (76 mm) pure titanium diaphragm; 2-inch (50 mm) exit throat. -
What is the continuous power handling?
110 W RMS continuous program power (AES standard). -
How does the magnet assembly contribute to performance?
A 190 × 20 mm large ferrite magnet provides high flux density, ensuring high sensitivity and low distortion even at extreme SPL. -
What material is the voice-coil former made from?
High-temperature Kapton® for excellent thermal stability and reliability under long-term high-power operation. -
What is the purpose of the copper inductance ring?
It lowers voice-coil inductance, extending high-frequency response and reducing harmonic distortion. -
Are the housing components durable?
Yes. The driver features a die-cast aluminum rear cover and front adaptor for superior heat dissipation and structural rigidity. -
What is the nominal impedance?
Standard 8 Ω version is available; 16 Ω on request. -
Can it be used in outdoor environments?
The aluminum housing and titanium diaphragm are corrosion-resistant, but the driver should be protected from direct moisture. Use a weather-resistant horn or wave-guide for outdoor installations. -
Are replacement diaphragms available?
Yes. Factory-original titanium diaphragm assemblies can be ordered for quick field service. -

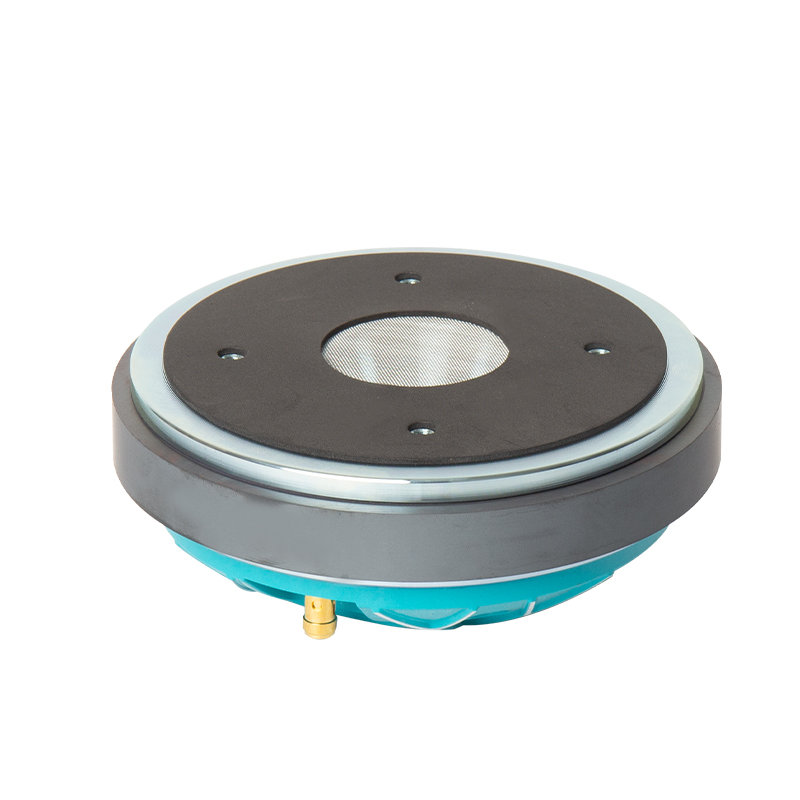

What mounting bolt pattern does the front adaptor use?
Industry-standard 4-bolt, 101.6 mm (4") on-center pattern, compatible with most 2" horns and wave-guides. -
What warranty is provided?
Standard 1-year manufacturer warranty against defects in materials and workmanship. -
Which horns or wave-guides are recommended?
Any 2" throat constant-directivity horn with coverage angles between 60° × 40° and 120° × 60° will match this driver for optimal dispersion and SPL.
Package Description
 |
 |
| Universal speaker box with foam inside | Customized speaker box is available |
